Product Portfolio

Our EV Chargers

AC chargers from 3.3 kW to 22 kW and DC fast chargers from 22 kW to 240 kW — click any product to view full technical specifications and dimensions.

AC Chargers

AC EV Chargers

Single and three-phase AC chargers with OCPP 1.6, RFID, GSM/4G, Wi-Fi, and on-board Class-1 metering. Click any charger for full specifications.

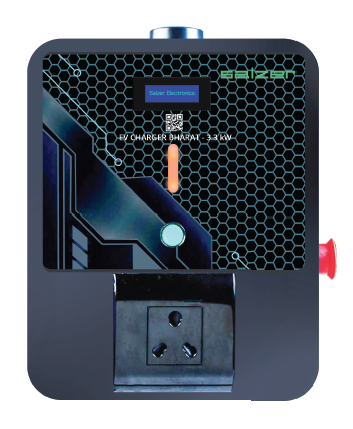

3.3 kW AC EV Charger
AC

3.3 kW AC EV Charger

Entry-level single-phase AC charger ideal for residential and light commercial use.

  • 3.3 kW
  • 16A Socket / 16A Industrial Socket
  • 280 × 230 × 101 mm
View full specs
7.4 kW AC EV Charger
AC

7.4 kW AC EV Charger

Single-phase charger with CCS Type 2 gun, RFID and GSM/4G + Wi-Fi connectivity.

  • 7.4 kW
  • CCS Type 2 Gun
  • 470 × 320 × 143 mm
View full specs

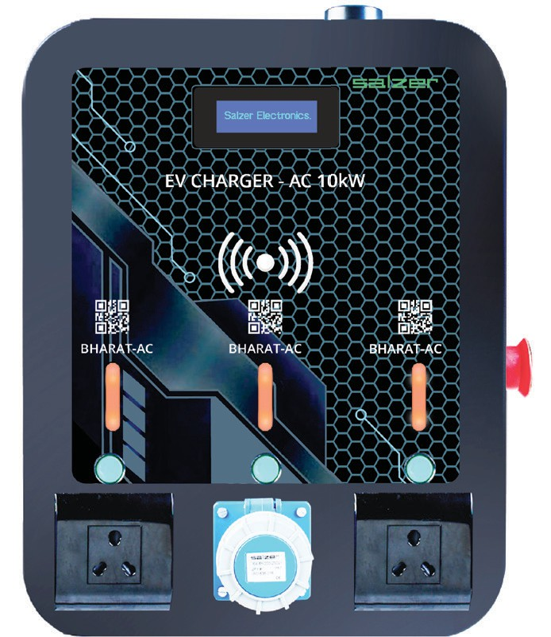

10 kW AC EV Charger
AC

10 kW AC EV Charger

Three-phase charger with three configurable connectors — ideal for multi-EV locations.

  • 10 kW (3*3.33kW)
  • 3× Configurable — 16A or Industrial Socket
  • 470 × 370 × 143 mm
View full specs

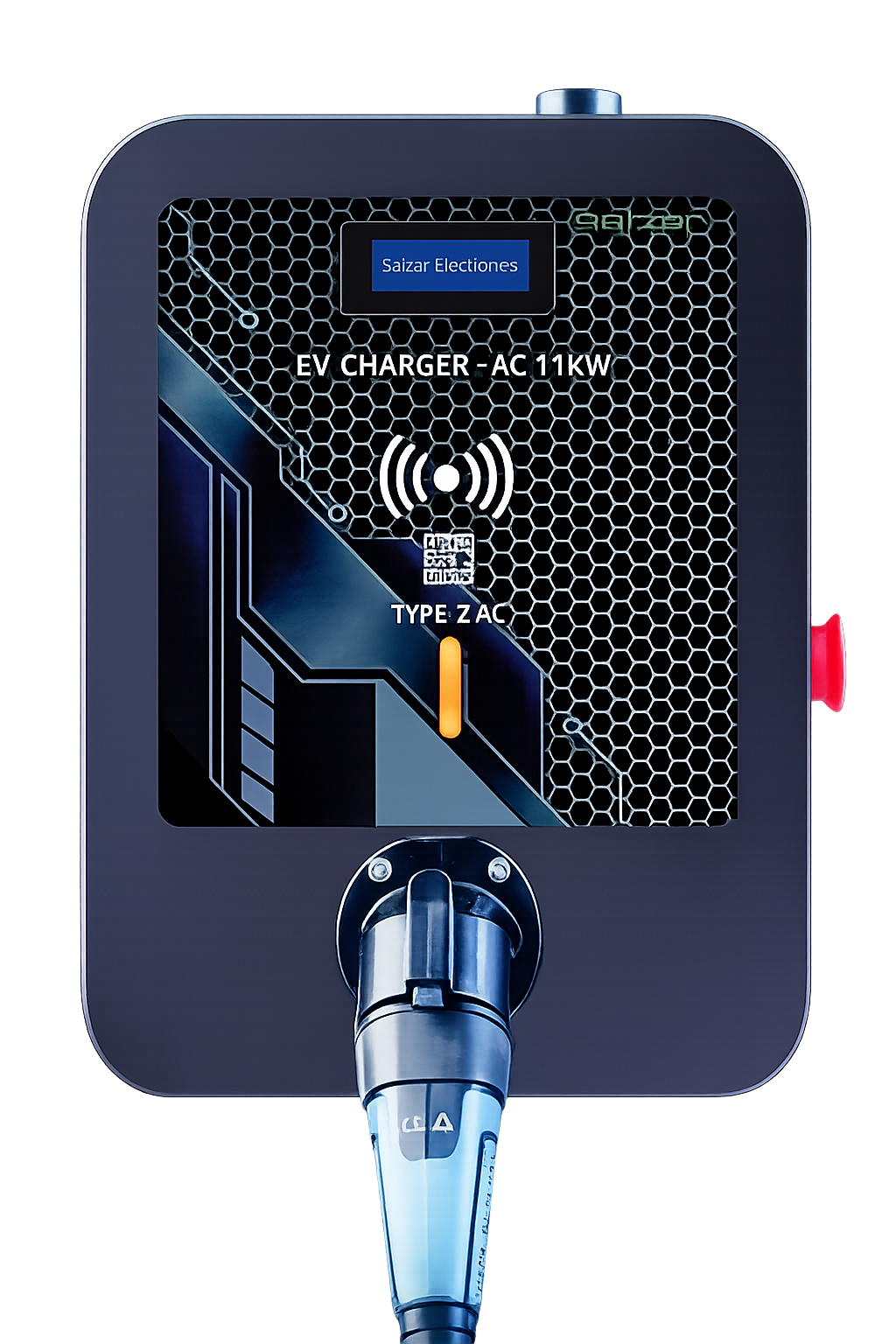

11 kW AC EV Charger
AC

11 kW AC EV Charger

Three-phase AC charger with single CCS Type 2 gun at 16A — the ideal mid-range option for commercial premises.

  • 11 kW
  • Single CCS Type 2 Gun
  • 470 × 370 × 143 mm
View full specs

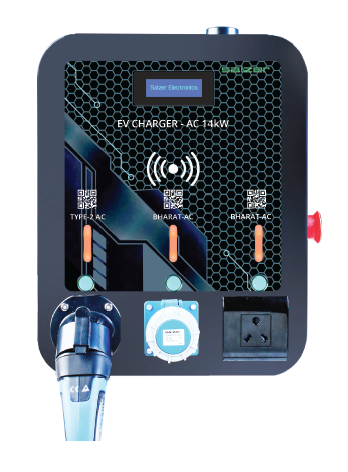

14 kW AC EV Charger
AC

14 kW AC EV Charger

Hybrid three-phase charger offering CCS Type 2, 16A industrial socket, and 16A socket in one unit.

  • 14 kW (1*7.4 kW, 2*3.3 kW)
  • Hybrid — CCS Type 2 + 16A Industrial Socket + 16A Socket
  • 470 × 370 × 143 mm
View full specs
15 kW AC EV Charger
AC

15 kW AC EV Charger

Three-phase dual-gun charger enabling simultaneous charging of two EVs via CCS Type 2.

  • 15 kW (2*7.4 kW)
  • Dual Gun — CCS Type 2
  • 470 × 370 × 143 mm
View full specs
22 kW AC EV Charger
AC

22 kW AC EV Charger

Highest-power AC charger in the range. Three-phase single CCS Type 2 gun for commercial premises.

  • 22 kW
  • Single CCS Type 2 Gun
  • 470 × 370 × 143 mm
View full specs
DC Fast Chargers

DC Fast Chargers

22 kW to 240 kW dual-gun DC fast chargers with real-time load sharing, 96% efficiency, and ARAI certification. Click any charger for full specifications.

22 kW DC EV Charger
DC

22 kW DC EV Charger

Ultra-compact wall-mount DC fast charger with CCS2, IP55 protection, and >97% uptime rating.

  • 22 kW
  • 73 A
  • 700 × 400 × 180 mm
View full specs
60 kW DC EV Charger
DC

60 kW DC EV Charger

Dual-gun DC fast charger delivering up to 30 kW per gun with real-time load sharing.

  • 60 kW
  • CCS2: 150 – 1000 VDC
  • 1524 × 670 × 549 mm
View full specs
80 kW DC EV Charger
DC

80 kW DC EV Charger

Dual-gun charger at 40 kW per gun. Field-upgradable to 120 kW without hardware replacement.

  • 80 kW (Upgradable to 120 kW)
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
90 kW DC EV Charger
DC

90 kW DC EV Charger

Smart dual-gun charger — deliver up to 60 kW to a single EV or split load dynamically between two.

  • 90 kW
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
120 kW DC EV Charger
DC

120 kW DC EV Charger

Dual-gun charger with dynamic 90 kW / 30 kW power split and OCPP 2.0.1 Smart Charging.

  • 120 kW
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
180 kW DC EV Charger
DC

180 kW DC EV Charger

High-power dual-gun charger delivering 90 kW per gun with IP54 indoor/outdoor rating.

  • 180 kW
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
240 kW DC EV Charger
DC

240 kW DC EV Charger

Ultra-fast dual-gun charger at 120 kW per gun. Ideal for highway corridors and high-traffic hubs.

  • 240 kW
  • CCS2: 150 – 1000 VDC
  • 1981 × 762 × 670 mm
View full specs
Compatibility

List of EV Chargers & Their Supported Vehicles

At-a-glance model, ordering code, and vehicle-type compatibility across the full Salzer range.

AC EV Chargers

Model (kW)Cat. No.Input VoltageOutput VoltageMax CurrentConnector
3.3SEVCSA033✔❌❌230 VAC230 VAC16Modular 16A
SEVCSB033❌✔❌230 VAC230 VACIndustrial Socket
7.4SEVCSC074❌❌✔230 VAC230 VAC32CCS Type 2
10SEVCTD010✔ ✔✔❌415 VAC230 VAC16Modular / Industrial Socket
SEVCTE010✔ ✔ ✔❌❌415 VAC230 VACModular Socket
SEVCTF010❌✔ ✔ ✔❌415 VAC230 VACIndustrial Socket
SEVCTG010✔✔ ✔❌415 VAC230 VACModular / Industrial Socket
14SEVCTH014✔✔✔415 VAC230 VAC32CCS Type 2 / Industrial / Modular Socket
SEVCTI014❌✔ ✔✔415 VAC230 VACCCS Type 2 / Industrial Socket
SEVCTJ014✔ ✔❌✔415 VAC230 VACCCS Type 2 / Modular Socket
15SEVCTK015❌❌✔ ✔415 VAC230 VAC32CCS Type 2
22SEVCTL022❌❌✔415 VAC415 VAC32CCS Type 2

DC EV Chargers

Model (kW)Cat. No.Input VoltageOutput VoltageMax CurrentConnector
22Contact Head OfficeNANA✔415 VAC150–1000 VDC32CCS2
60Contact Head OfficeNANA✔ ✔415 VACUp to 1000 VDC88CCS2
60 Upgradable 120Contact Head OfficeNANA✔ ✔415 VACUp to 1000 VDC88–176CCS2
80Contact Head OfficeNANA✔ ✔415 VACUp to 1000 VDC117CCS2
80 Upgradable 160Contact Head OfficeNANA✔ ✔415 VACUp to 1000 VDC117–234CCS2
90Contact Head OfficeNANA✔ ✔415 VACUp to 1000 VDC132CCS2
90 Upgradable 120Contact Head OfficeNANA✔ ✔415 VACUp to 1000 VDC132–176CCS2
120Contact Head OfficeNANA✔ ✔415 VACUp to 1000 VDC176CCS2
120 Upgradable 180Contact Head OfficeNANA✔ ✔415 VACUp to 1000 VDC176–264CCS2
160Contact Head OfficeNANA✔ ✔415 VACUp to 1000 VDC234CCS2
240Contact Head OfficeNANA✔ ✔415 VACUp to 1000 VDC351CCS2
✔ = Single EV can charge at a time✔ ✔ = Two EVs can charge at a time✔ ✔ ✔ = Three EVs can charge at a time❌ = Not suitable for the EV typeNA = Not applicable
Modular Socket = 16A 5-pin SocketIndustrial Socket = 3-Pin IEC60309 SocketCCS Type 2 = Combined Charging System Type 2 (IEC 62196-2)CCS2 = Combined Charging System 2
Resources

Downloads & Resources

AC EV Charger Catalogue

Full AC charger product range & specs

PDF • 15 MB

DC EV Charger Catalogue

Full DC charger product range & specs

PDF • 3.2 MB

AC EV Charger User Manual

Installation, setup & operating instructions

PDF • 1.4 MB

Need a custom solution?

Our team designs bespoke charging infrastructure tailored to your site and requirements.
